SE-IR Splice Trays with ANT Splice Bridges
Art.-No. 857-40253 | TRAY-SE-IR-2XANT-06 Details

  • Positive fibre management - minimum bend radius 30mm
  • 2 fibre entry ports
  • 2 mounting positions for splice inserts
  • Option for optical splitter/3A or ANT splice bridge
  • Optical splitter accommodation up to a maximum of 60 x 7 x 4mm
  • Maximum splice capacity of 24 fibres (double stacked)
  • Different splice bridge options allow for a splice type of up to 60mm
Show more
Colour White (WH)
Content 6 x IR Single Element Trays, 12 x Crimp (ANT) splice protector holders
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION TRAY-SE-IR-2XANT-06
Pack Cont. 6pcs.
Package Content packed in bag
Product Family IR Single Element SE
Product Group Integrated Routing Fibre Optic Splice Tray
Qty Trays 6
Short Description SE-IR Splice Trays with ANT Splice Bridges
Technical Description The Integrated Routing (IR) single element splitter tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element splitter tray is supplied with 2 x ANT (Crimp) splice bridges. The maximum splice capacity of the tray is 24 fibres. The IR single element splitter trays is suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
Type TRAY-SE-IR-2XANT-06
Type of Tray IR SE

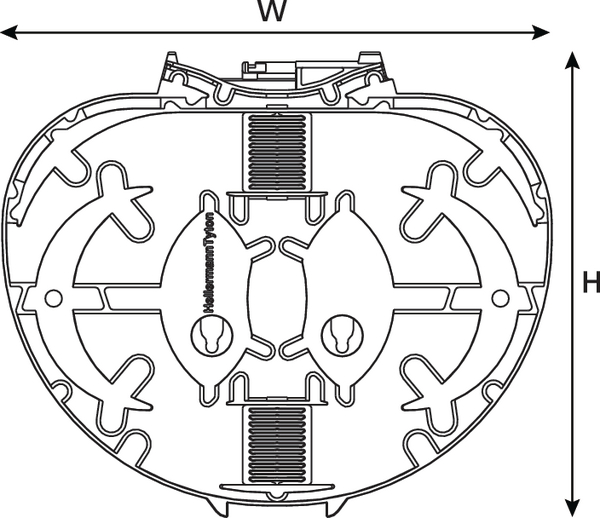

Depth (D) 7mm
Height (H) 125mm
Width (W) 148mm
Hazardous Goods No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660100659
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 0.3kg
ETIM 7.0 Key EC000762
ETIM 8.0 Key EC000762
ETIM 9.0 Key EC000762
