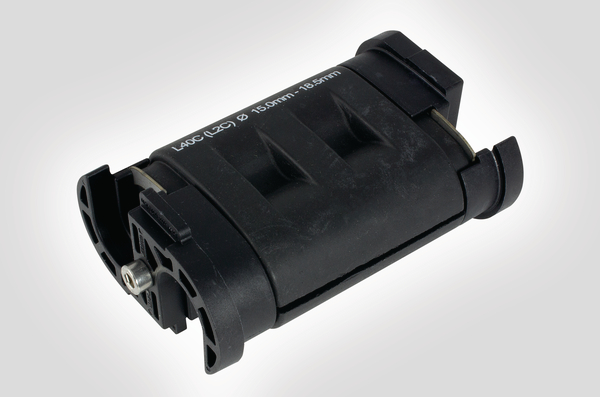

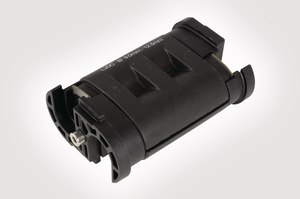

Cablelok L40C 15.0-18.5mm x10
Art.-No. 857-50194 | CABLELOK-L40C-10 Details

  • Cable range coverage from 5.5mm to 20.0mm
  • Dual outlet for loop through applications
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Show more
Cable ∅ max 18.5mm
Cable ∅ min 15.0mm
Colour Black (BK)
Content 10 x CABLELOK-L40C(L2C), 1 x Allen Key, 20 x Lubricating Wipes
Material Chloroprene Rubber (CR)
PART DESCRIPTION CABLELOK-L40C-10
Pack Cont. 10pcs.
Package Content packed in bag
Port L
Port count 2
Product Description HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%.
Product Family L Port Series
Product Group L Port Cablelok
Short Description Cablelok L40C 15.0-18.5mm x10
Technical Description The L Port Cablelok is a mechanical seal manufactured from Neoprene rubber, Minlon and Acetal. There are 6 Cablelok's which cover a cable range of 5.5mm – 20.0mm five of which have a dual outlet for loop through applications, the sixth being a port plug for blocking unused L sized drop ports.
Type CABLELOK-L40C-10
Variant Oval - L
Hazardous Goods No
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660102486
Packaging 1 - Qty 10
Packaging 1 - Type bag
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 43202218
