LM Port Series

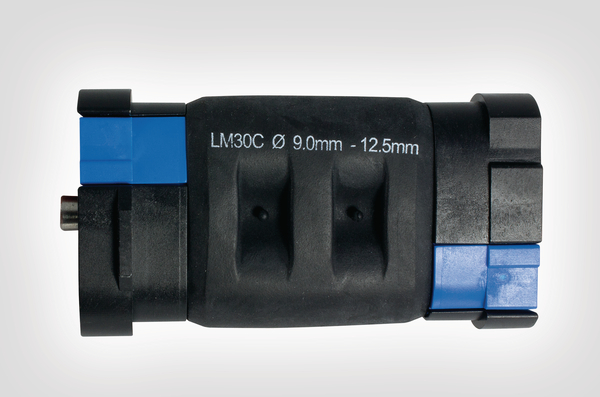

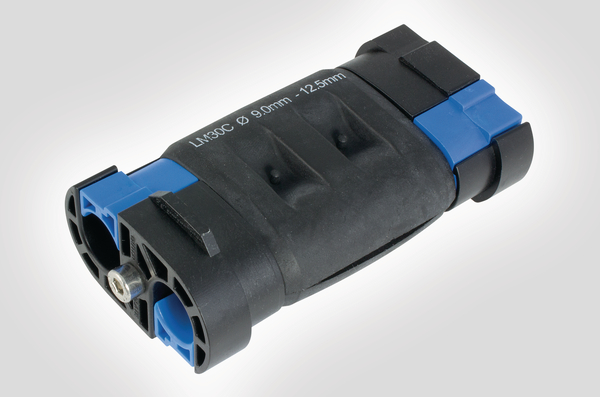

Art.-No. 857-50207 | CABLELOK-LM30C-01 Details

  • Cable range coverage from 4.0mm to 15.0mm
  • Dual outlet for loop through applications
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets.
Show more
Cable ∅ max 12.5mm
Cable ∅ min 9.0mm
Colour Black (BK)
Content 1 X CABLELOK-LM30C, 1 x Allen Key, 2 x Lubricating Wipe
Material Chloroprene Rubber (CR)
Pack Cont. 1pc.
Package Content packed in bag
PART DESCRIPTION CABLELOK-LM30C-01
Port LM
Port count 2
Product Family LM Port Series
Product Group LM Port Cablelok
Technical Description The LM Port Cablelok is a mechanical seal manufactured from Neoprene rubber, Minlon and Acetal. There are 5 Cablelok's which cover a cable range of 4.8mm – 15.0mm four of which have a dual outlet for loop through applications, the fifth being a port plug for blocking unused LM sized drop ports.
Variant Oval - LM
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660113086
Order Unit pcs.
EFO Norway block number 100600
ETIM 7.0 Key EC002609
UNSPSC Key 43202218
