Cablelok L(2) 18.3-20.0mmX1
Art.-No. 857-50195 | CABLELOK-L50C-01 Details

  • Cable range coverage from 5.5mm to 20.0mm
  • Dual outlet for loop through applications
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Show more
Cable ∅ max 20.0mm
Cable ∅ min 18.3mm
Colour Black (BK)
Content 1 x CABLELOK-L50C(L3C), 1 x Allen Key, 2 x Lubricating Wipes
Material Chloroprene Rubber (CR)
Pack Cont. 1pc.
Package Content packed in bag
Port L
Port count 2
Product Family L Port Series
Product Group L Port Cablelok
Short Description Cablelok L(2) 18.3-20.0mmX1

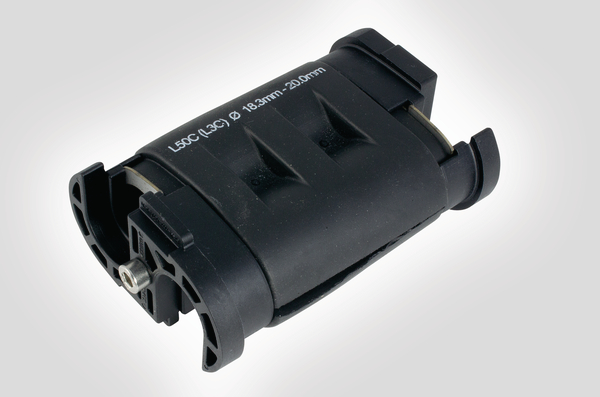

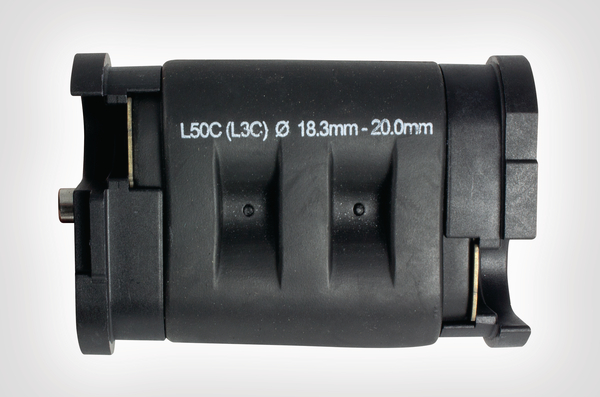

Technical Description The L Port Cablelok is a mechanical seal manufactured from Neoprene rubber, Minlon and Acetal. There are 6 Cablelok's which cover a cable range of 5.5mm – 20.0mm five of which have a dual outlet for loop through applications, the sixth being a port plug for blocking unused L sized drop ports.
Variant Oval - L
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 4031026620176
Order Unit pcs.
EFO Norway block number 100600
ETIM 7.0 Key EC002609
UNSPSC Key 43202218
