FRBU 16 port M length closure with 3 x Hellapon small trays
Art.-No. 857-02063 | FRBTB-MXBSA31 |

Copied

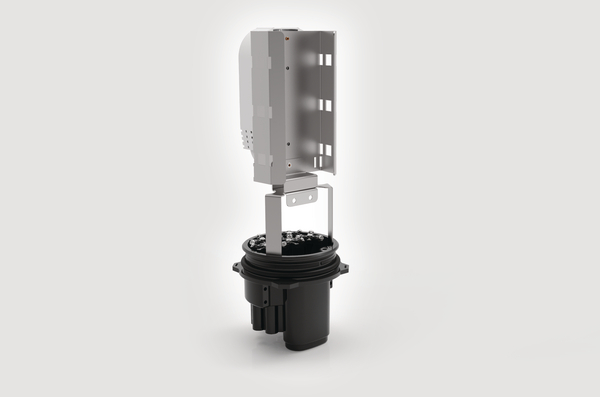

FRBU, 16 Port, 3 X Hellapon Small, Basket

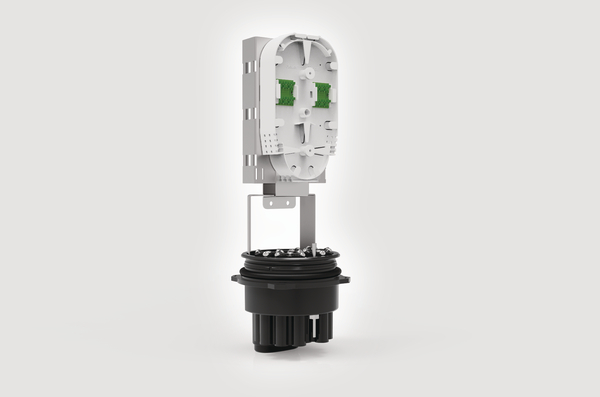

FRBU, 16 Port, 3 X Hellapon Small, Basket

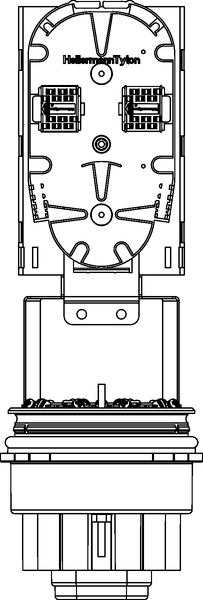

FRBU, 16 Port, Hellapon Small, Basket (front view)

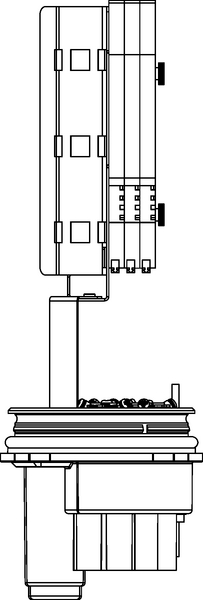

FRBU, 16 Port, 3 X Hellapon Small, Basket (side view)

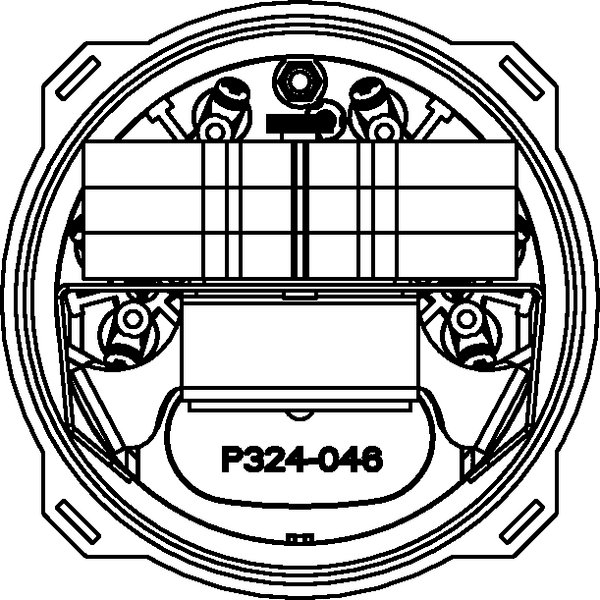

FRBU, 16 Port, 3 X Hellapon Small, Basket (top view)

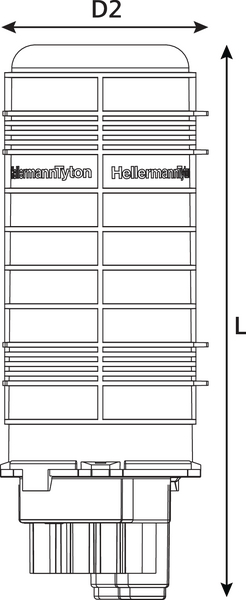

FRBU 16 Port M with Cover

    • Maximum 36 fibre splice capacity
    • 16 round ports and 1 oval port
    • Fibre storage basket for loop through applications
    • 3 x Hellapon Small trays
    • Maximum 12 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed-through
    Add to watchlist
    Downloads
    Colour Black (BK)
    Content FRBU 16 Port Base
    M-Length Cover (Dome)
    Quick Release Clamp
    Sealing ’O’ Ring
    Fibre Storage Basket
    3 x Hellapon Small Trays
    Tray Support Frame
    Anchor Fixing Kit (6)
    Transportation Tubing
    Hook and Loop Management Ties
    Cable Ties
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 - 12
    Green Marker 1 – 12
    Cover Type M
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FRBTB-MXBSA31
    Package Content packed in kit
    Port LM, R
    Port count 1, 16
    Product Family M Length
    Product Group FRBU 16 Port Closure
    Qty Trays 3
    Short Description FRBU 16 port M length closure with 3 x Hellapon small trays
    Splice Capacity 36
    Technical Description The FRBU 16 Port M Length closure is supplied with a Polypropylene base. The base configuration of 16 round ports and 1 oval port which accommodate covers a cable diameter range of 1.7 – 9.5mm (R Ports) and 4.0 – 15.0mm (LM port) when using Cablelok mechanical seals.
    The mounting system is manufactured from Grade 304 stainless steel and is supplied with 3 x Hellapon Small Trays giving a maximum of 36 fibre splices. The fibre basket provides storage space for the storage of fibre loops within the closure.
    The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays.
    The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
    Type FRBTB-MXBSA31
    Type of Tray Hellapon Small
    Variant Outdoor Enclosure
    Length (mm) 360mm
    Width D1 130mm
    Width D2 130mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660174865
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.54m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.010584m³
    Packaging 1 - Weight (kg) 1.6kg
    Packaging 1 - Width (m) 0.14m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
