Universal Installation Bracket
Art.-No. 857-40332 | INSTALL-BRKT |

Copied

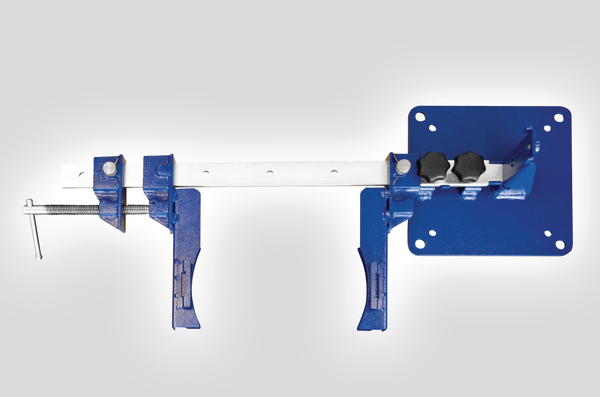

Universal Mounting Bracket
Universal Mounting Bracket

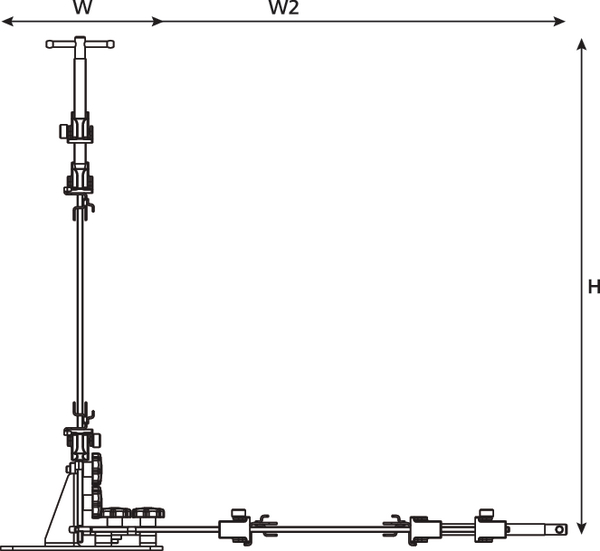

Universal Mounting Bracket (side view)

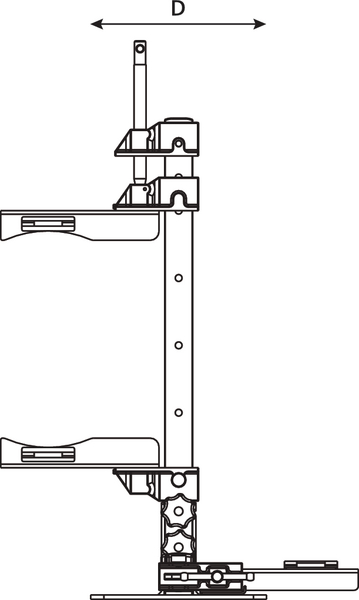

Universal Mounting Bracket (front view)

    This product is not available anymore.
    • Suitable for use with all HellermannTyton closures
    • Simple and quick to use
    • Vertical or horizontal orientation possible
    • Manufactured from zinc passivated mild steel
    Add to watchlist
    Downloads
    Colour Blue (BU), Silver (SR)
    PART DESCRIPTION INSTALL-BRKT
    Pack Cont. 1pc.
    Package Content packed in box
    Product Description Universal Installation Bracket
    Product Family Mounting Brackets
    Product Group Universal Installation Bracket
    Technical Description The Universal Installation Bracket is designed for securing the full HellermannTyton range of broadband closures and can be positioned either horizontally or vertically providing the best access possible during installation or maintenance. The installation bracket is supplied with a single set of clamping jaws which are adjustable and accommodate the full range of closures from the largest UFC to the smallest FST.
    The Installation Bracket can be clamped to a suitable workbench surface or bolted in place using the mounting holes provided, it is manufactured from high quality mild steel which is zinc passivated and painted for a long service life.
    Type INSTALL-BRKT
    Depth (D) 200mm
    Height (H) 635mm
    Width (W) 200mm
    Width (W2) 700mm
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 73269098
    GTIN-13 / EAN 5022660123269
    ETIM 7.0 Key EC002609
    ETIM 8.0 Key EC002609
    ETIM 9.0 Key EC002609
    UNSPSC Key 43223337
