GigaDuct Elbow, Horizontal, 90⁰, 300mm, with Cover
Art.-No. 181-00395 | LG-BHXA90-YL |

Copied

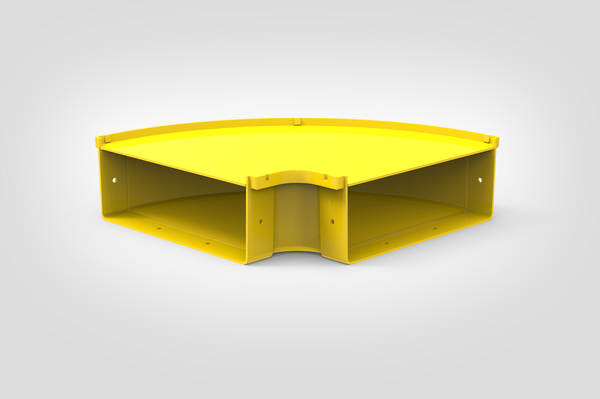

90° Horizontal Elbow with cover.

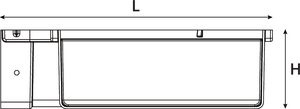

Horizontal Elbow.
Horizontal Elbow.

    • 300mm wide
    • 90⁰ Bend
    • Supplied with cover
    • Changes direction of horizontal routes
    • Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
    • Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
    • Maintains attractive aesthetics by enclosing cables throughout the facility
    Add to watchlist
    Downloads CAD-Download
    Application Horizontal elbows are used for creating bends that change the direction of horizontal routes. This model offers a 90⁰ bend and is supplied with cover.
    Colour Yellow (YE)
    PART DESCRIPTION LG-BHXA90-YL
    Product Family Elbow - Horizontal
    Product Group Fittings
    Short Description GigaDuct Elbow, Horizontal, 90⁰, 300mm, with Cover
    Technical Description GigaDuct is a robust, scalable cable management system engineered specifically for organising and protecting optical fibre cables in the data centre environment. Constructed with precision, it provides a dedicated pathway that prevents cable congestion, minimises physical stress on fibres, and facilitates efficient cable management. Whether you are setting up a new data centre or upgrading an existing one, HellermannTyton’s GigaDuct offers unmatched versatility and reliability.
    Type LG-BHXA90-YL
    Angle 90

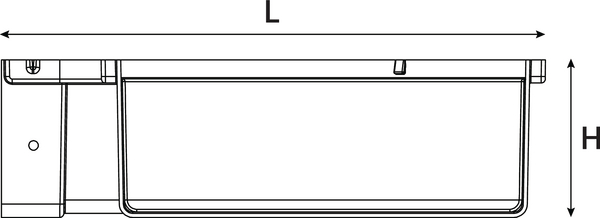

    Height (H) 113mm

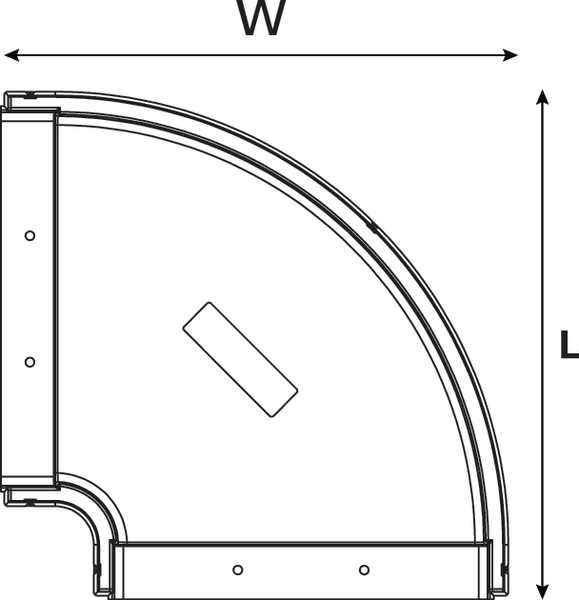

    Length (L) 331mm
    Width (W) 363mm
    Halogen-free Yes
    Limited Fire Hazard Yes
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Dimensions W x H x D 363 mm x 113 mm x
    GTIN-13 / EAN 4031026496580
