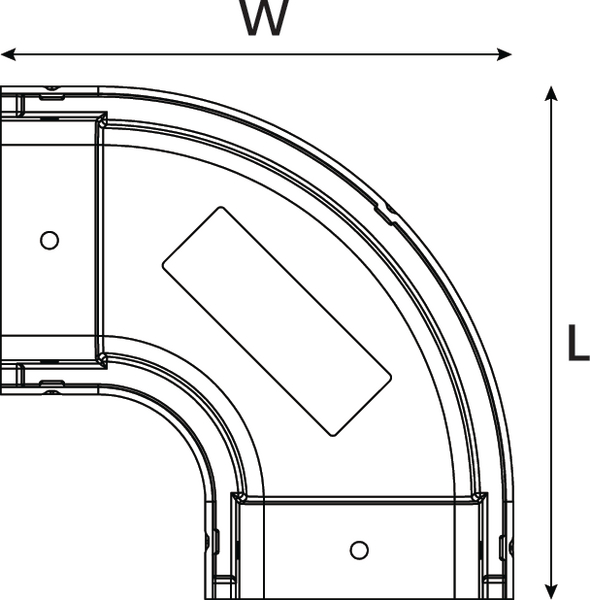

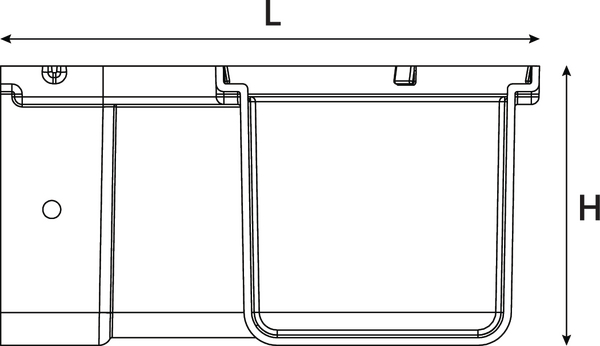

GigaDuct Elbow, Horizontal, 90⁰, 100mm, No Cover
Art.-No. 855-05049 | LG-BHXC90-YL-N |

Copied
90° Horizontal Elbow without cover.
Horizontal Elbow.
Horizontal Elbow.

    • 100 mm wide
    • 90⁰ Bend
    • Supplied without cover
    • Changes direction of horizontal routes
    • Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
    • Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
    • Maintains attractive aesthetics by enclosing cables throughout the facility
    Add to watchlist
    Downloads
    Application Horizontal elbows are used for creating bends that change the direction of horizontal routes. This model offers a 90⁰ bend and is supplied without cover.
    Colour Yellow (YE)
    PART DESCRIPTION LG-BHXC90-YL-N
    Product Family Elbow - Horizontal
    Product Group Fittings
    Short Description GigaDuct Elbow, Horizontal, 90⁰, 100mm, No Cover
    Technical Description GigaDuct is a robust, scalable cable management system engineered specifically for organising and protecting optical fibre cables in the data centre environment. Constructed with precision, it provides a dedicated pathway that prevents cable congestion, minimises physical stress on fibres, and facilitates efficient cable management. Whether you are setting up a new data centre or upgrading an existing one, HellermannTyton’s GigaDuct offers unmatched versatility and reliability.
    Type LG-BHXC90-YL-N
    Angle 90
    Halogen-free Yes
    Limited Fire Hazard Yes
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660241932
