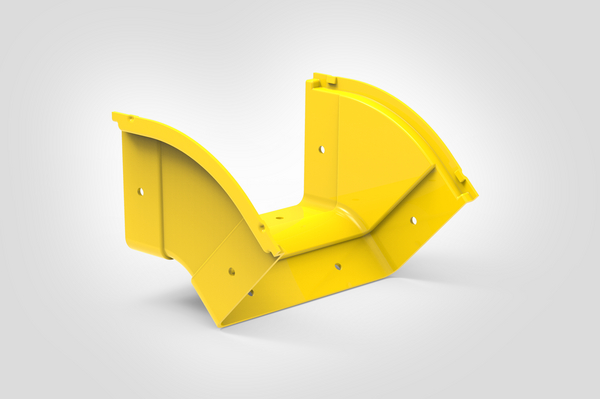

GigaDuct Elbow, Vertical Outside, 45⁰, 200mm, No Cover
Art.-No. 855-05063 | LG-BVOB45-YL-N |

Copied
90° Vertical Outside Elbow without cover.

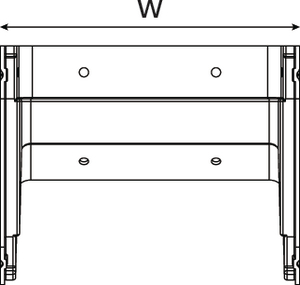

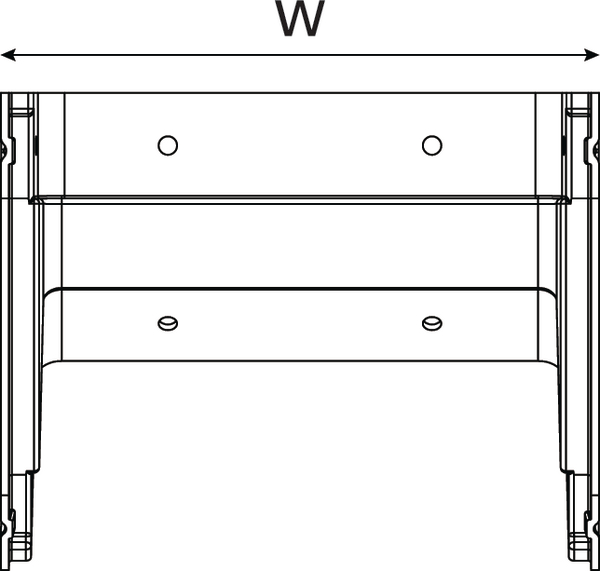

Vertical Outside Elbow.

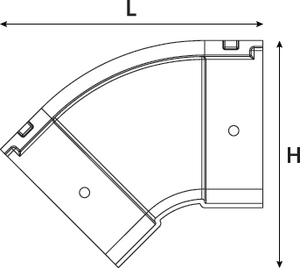

Vertical Outside Elbow.

    • 200mm wide
    • 45⁰ Bend
    • Supplied without cover
    • For creating vertical downward routing transitions from horizontal routes
    • Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
    • Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
    • Maintains attractive aesthetics by enclosing cables throughout the facility
    Add to watchlist
    Downloads CAD-Download
    Application Vertical outside elbows are used for creating a vertical downward transition from GigaDuct horizontal routes. This model offers a 45⁰ bend and is supplied without cover.
    Colour Yellow (YE)
    PART DESCRIPTION LG-BVOB45-YL-N
    Product Family Elbow - Vertical Outside
    Product Group Fittings
    Short Description GigaDuct Elbow, Vertical Outside, 45⁰, 200mm, No Cover
    Technical Description GigaDuct is a robust, scalable cable management system engineered specifically for organising and protecting optical fibre cables in the data centre environment. Constructed with precision, it provides a dedicated pathway that prevents cable congestion, minimises physical stress on fibres, and facilitates efficient cable management. Whether you are setting up a new data centre or upgrading an existing one, HellermannTyton’s GigaDuct offers unmatched versatility and reliability.
    Type LG-BVOB45-YL-N
    Angle 45
    Halogen-free Yes
    Limited Fire Hazard Yes
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 4031026786438
