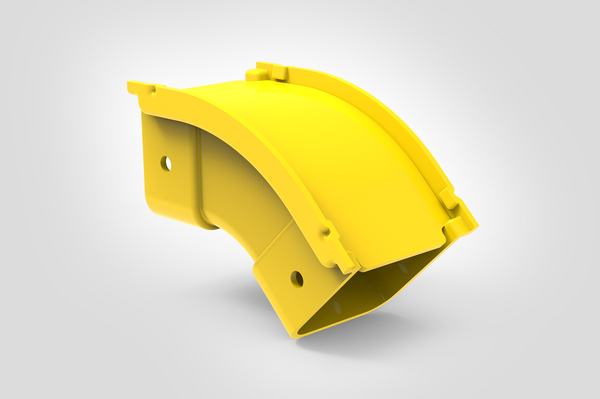

GigaDuct Elbow, Vertical Outside, 45⁰, 50mm, with Cover
Art.-No. 181-00420 | LG-BVOD45-YL |

Copied
90° Vertical Outside Elbow
Vertical Outside Elbow.
Vertical Outside Elbow.

    • 50mm wide
    • 45⁰ Bend
    • Supplied with cover
    • For creating vertical downward routing transitions from horizontal routes
    • Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
    • Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
    • Maintains attractive aesthetics by enclosing cables throughout the facility
    Add to watchlist
    Downloads CAD-Download
    Application Vertical outside elbows are used for creating a vertical downward transition from GigaDuct horizontal routes. This model offers a 45⁰ bend and is supplied with cover.
    Colour Yellow (YE)
    PART DESCRIPTION LG-BVOD45-YL
    Product Family Elbow - Vertical Outside
    Product Group Fittings
    Short Description GigaDuct Elbow, Vertical Outside, 45⁰, 50mm, with Cover
    Technical Description GigaDuct is a robust, scalable cable management system engineered specifically for organising and protecting optical fibre cables in the data centre environment. Constructed with precision, it provides a dedicated pathway that prevents cable congestion, minimises physical stress on fibres, and facilitates efficient cable management. Whether you are setting up a new data centre or upgrading an existing one, HellermannTyton’s GigaDuct offers unmatched versatility and reliability.
    Type LG-BVOD45-YL
    Angle 45
    Height (H) 96mm
    Length (L) 126mm
    Width (W) 76mm
    Halogen-free Yes
    Limited Fire Hazard Yes
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Dimensions W x H x D 76 mm x 96 mm x
    GTIN-13 / EAN 4031026497563
