OS2 RapidNet Fibre LC 24 Core Cassette with 1 Rear MTP Connector
Art.-No. 859-22768 | RNFMD-24LC1MS2-XX.XX Details

Connector Colour Blue (BU)
Connector Type LC, MTP
Local order number RNFMD-24LC1MS2-XX.XX
PART DESCRIPTION RNFMD-24LC1MS2-XX.XX
Performance Category OS2 Single Mode
Port count 24

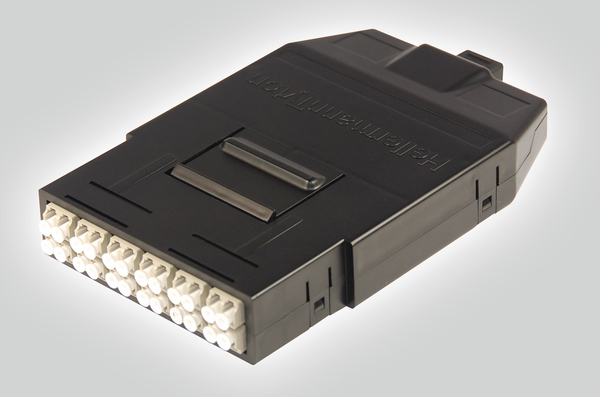

Product Description The RapidNet Fibre LC Cassette with MTP connectivity is pre-terminated offering LC connectivity in either single mode or multimode. The RapidNet LC cassette offers up to 24 ports in one cassette and has 1 MTP connector on the rear of the case for use with MTP back bone cables or fibre fan outs. The presentation of 24 ports in one cassette enables up to 96 fibres in 1U of rack space, with 4 cassettes fitting into a RapidNet Patch Panel. The RapidNet LC Cassette with MTP connectivity solution has been designed to make installation quicker and easier, especially where space is limited, by providing reduced installation times, efficient use of space, flexible configurations and high performance.
Product Family Cassette with 1 Rear MTP Connector
Product Group RapidNet Fibre LC 24 Core
Short Description OS2 RapidNet Fibre LC 24 Core Cassette with 1 Rear MTP Connector
Technical Description The cassette is manufactured with a single push clip mechanism and polarising clips to prevent incorrect insertion. Fibre Optic management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. The individual fibres within the cassette are managed using positive bend radius management to ensure minimum losses and maximum performance. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C standards.
Type RNFMD-24LC1MS2-XX.XX

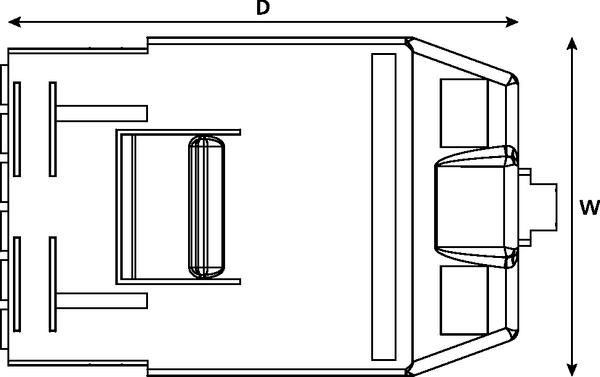

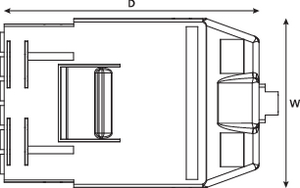

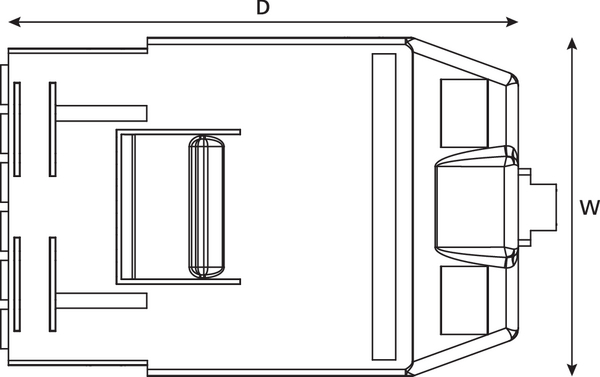

Depth (D) 130mm

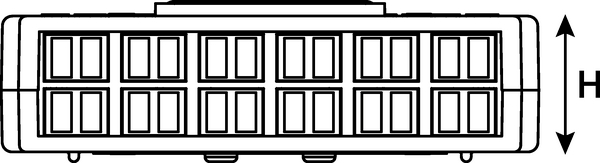

Height (H) 27mm
Width (W) 102mm
Country of Origin GB
Dimensions W x H x D 102 mm x 27 mm x 130 mm
GTIN-13 / EAN 5022660144134
