04/11/2025

CPU with 2 cable entry points and PG16 glands
Art.-No. 857-00349 | CPU3862 |

Copied

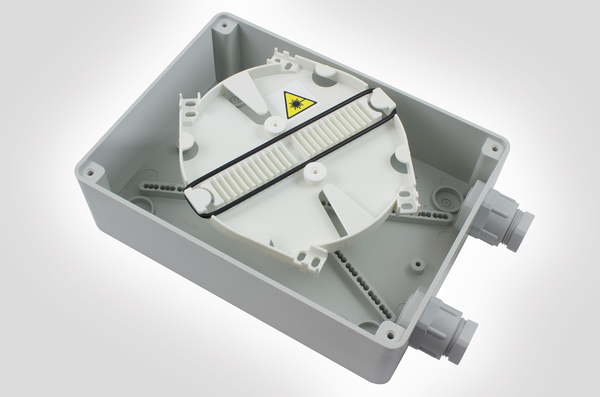

Customer Premise Unit
Customer Premise Unit

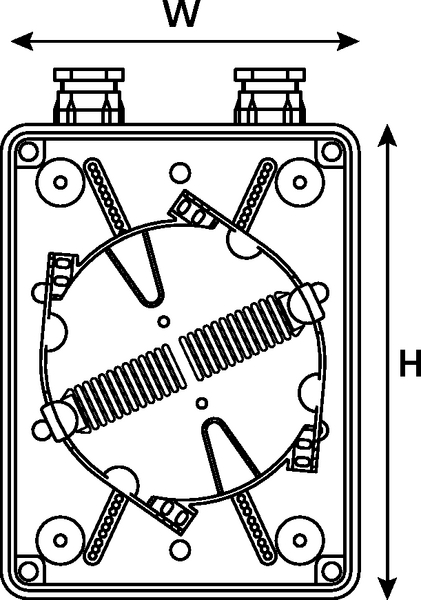

Customer Premise Unit (front view)

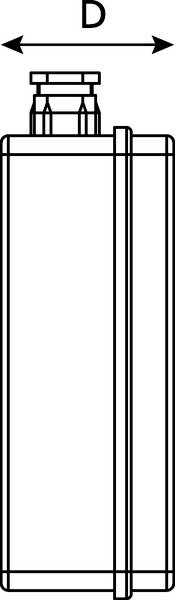

Customer Premise Unit (side view)

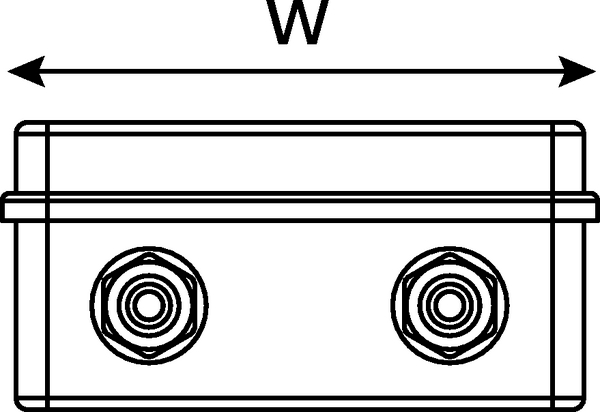

Customer Premise Unit (top view)

    • Maximum splice capacity of 24 fibres
    • 2 cable entry points
    • 2 piece box allows easy access to fibre
    • Cable loop storage capacity
    • IP56 rated
    Add to watchlist
    Downloads
    Cable ⌀ max 14mm
    Cable ⌀ min 10mm
    Colour Grey (GY)
    Content Customer Premise Unit Box
    Hellafos Tray
    Cable Loop Storage Spool
    Cable Glands
    Transport Tubing
    Markers
    Green 1 - 12
    Red 1 - 12
    PART DESCRIPTION CPU3862
    Package Content packed in kit
    Product Family Fibre Optic Internal Enclosure
    Product Group CPU - Customer Premise Unit
    Qty Trays 1
    Short Description CPU with 2 cable entry points and PG16 glands
    Technical Description The Customer Premise Unit has been designed for the organisation and protection of fibre optic splices in internal and sheltered environments. The 2 piece polystyrene box is available with either 2 or 4 cable entry points with a total of 4 entry points and cable gland size options to choose from. Each box is fitted with a single Hellafos splice tray which is mounted on a cable loop storage spool and can achieve a maximum 24 fibre splice capacity when using a 3A heatsrink splice protector.
    Type CPU3862
    Type of Gland PG16
    Type of Tray Hellafos
    Depth (D) 80mm
    Height (H) 195mm
    Width (W) 145mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660984730
    ETIM 7.0 Key EC002358
    ETIM 8.0 Key EC002358
    ETIM 9.0 Key EC002358
    Home Connections Home Connections

    Home Connections

    From building entry to internal fibre routing within the property, HellermannTyton have developed a number of products to give home owners and residents increased flexibility with the position of their broadband ONT and Router.

    Home Connections >
