CPU with 4 cable entry points and PG16/PG11 glands
Art.-No. 857-00350 | CPU3863 Details

  • Maximum splice capacity of 24 fibres
  • 4 cable entry points

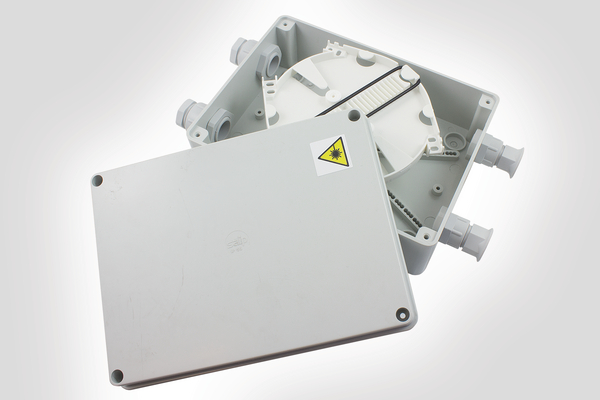

  • 2 piece box allows easy access to fibre
  • Cable loop storage capacity
  • IP56 rated
Show more
Cable ∅ max 14mm
Cable ∅ min 4mm
Colour Grey (GY)

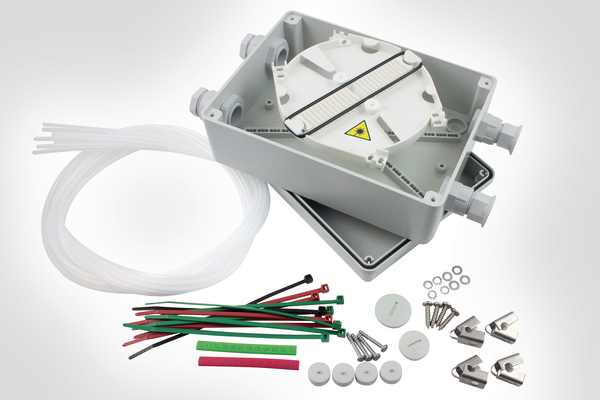

Content Customer Premise Unit Box
Hellafos Tray
Cable Loop Storage Spool
Cable Glands
Transport Tubing
Markers
Green 1 - 12
Red 1 - 12
PART DESCRIPTION CPU3863
Package Content packed in kit
Product Family Fibre Optic Internal Enclosure
Product Group CPU - Customer Premise Unit
Qty Trays 1
Short Description CPU with 4 cable entry points and PG16/PG11 glands

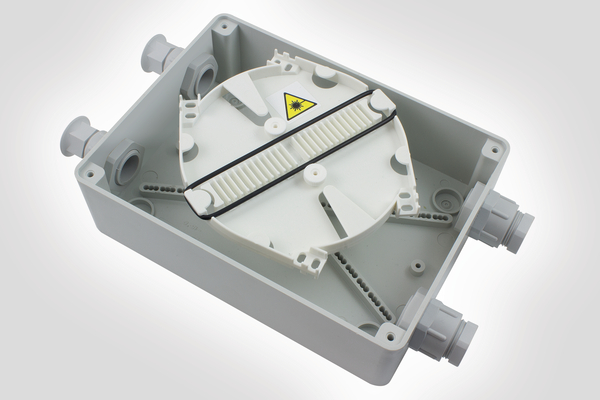

Technical Description The Customer Premise Unit has been designed for the organisation and protection of fibre optic splices in internal and sheltered environments. The 2 piece polystyrene box is available with either 2 or 4 cable entry points with a total of 4 entry points and cable gland size options to choose from. Each box is fitted with a single Hellafos splice tray which is mounted on a cable loop storage spool and can achieve a maximum 24 fibre splice capacity when using a 3A heatsrink splice protector.
Type CPU3863
Type of Gland PG16, PG11
Type of Tray Hellafos

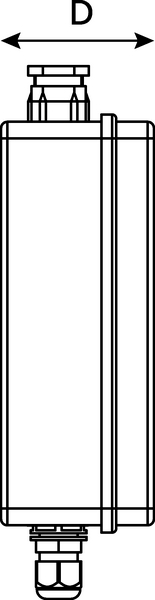

Depth (D) 80mm

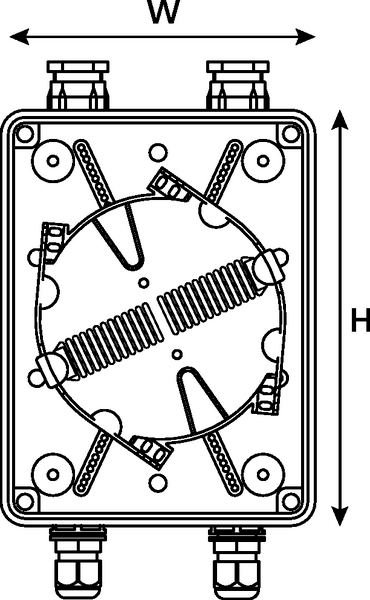

Height (H) 195mm

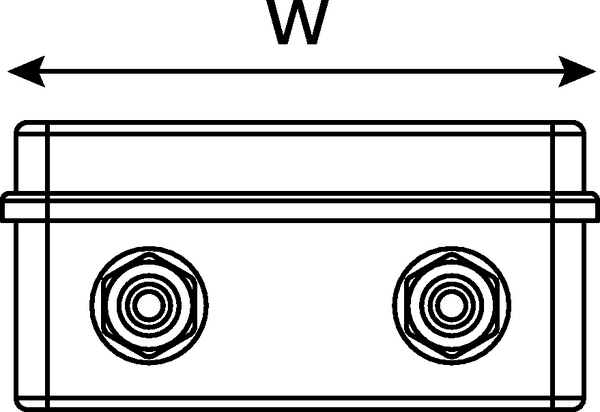

Width (W) 145mm
Country of Origin GB
GTIN-13 / EAN 5022660117206
ETIM 7.0 Key EC002358
ETIM 8.0 Key EC002358
ETIM 9.0 Key EC002358
