FDN 59 port AB length IR closure with 12 SE-IR MKI trays fitted with 2 x 3A splice bridges
Art.-No. 857-00494 | FDNIR-ABXCWX Details

  • Maximum 144 fibre splice capacity
  • 58 round ports and 1 oval port
  • Positive fibre management to ensure consistent 30mm minimum fibre bend radius throughout
  • Bi-directional fibre routing
  • Supplied with 12 SE-IR MKI Trays fitted with 2 x 3A (Green) splice
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional pressure release valve
Show more
Colour Black (BK)
Content FDN 59 Port IR Base
AB-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
Fibre Optic Routing Module
Fibre Optic Storage Unit
Fibre Optic Storage Unit Lid
Fibre Slot Entry Module
Fibre Slot Retaining Block
12 x SE-IR MKI 3A Splice Trays
Reusable Cable Ties
Tray Lid
Tray Tool
Anchor Fixing Kit (3)
Spiral Binding
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 - 25
Green Marker 1 – 25
Cover Type AB
Material Polypropylene (PP)
Method of Sealing Cablelok, Heatshrink
PART DESCRIPTION FDNIR-ABXCWX
Package Content packed in box
Port L, T, S, B, R
Port count 1, 2, 4, 2, 52
Product Family AB Length
Product Group FDN 59 Port Integrated Routing Closure
Qty Trays 12
Short Description FDN 59 port AB length IR closure with 12 SE-IR MKI trays fitted with 2 x 3A splice bridges
Splice Capacity 144

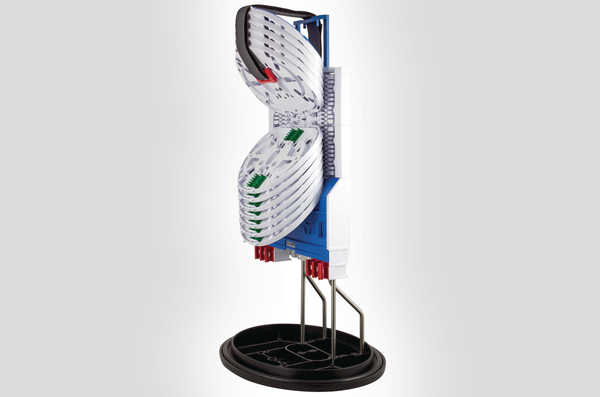

Technical Description The FDN 59 Port Integrated Routing (IR) AB Length closure is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 12 SE-IR MKI 3A splice trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
Type FDNIR-ABXCWX
Type of Tray Integrated Routing SE, 250µm
Variant Outdoor FTTx Enclosures

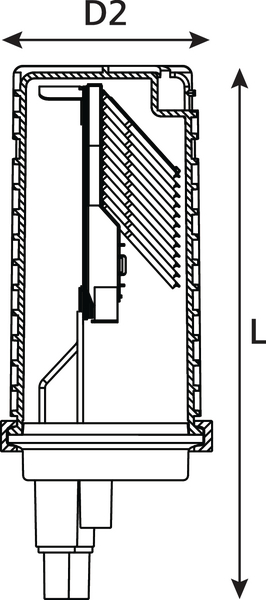

Length (L) 561mm
Length (mm) 561mm
Width D1 312mm
Width D2 222mm
Hazardous Goods No
Country of Origin GB
Customs Number 85176200
GTIN-13 / EAN 5022660100017
Packaging 1 - Height (m) 0.72m
Packaging 1 - Length (m) 0.32m
Packaging 1 - Qty 1
Packaging 1 - Type box
Packaging 1 - Volume (m³) 0.07373
Packaging 1 - Weight (kg) 6.5kg
Packaging 1 - Width (m) 0.32m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
