S Series MDU/MBU Enclosures

Introduction

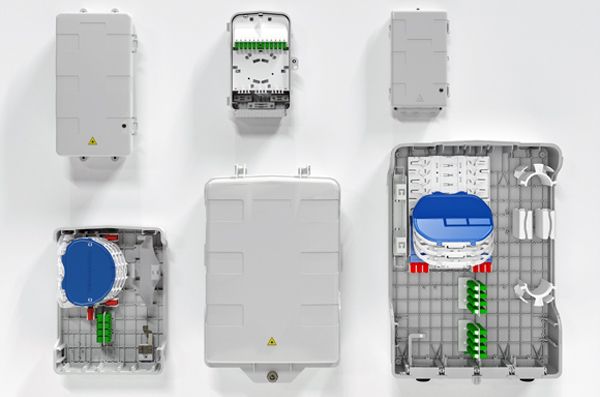

MDU Fibre Enclosures - S5, S4, S3, S2XL, S2, S1 and S1XS

MDU Fibre Enclosures - MDU - S5, MDU - S4, MDU - S3, MDU - S2 and MDU - S1

The range of MDU enclosures from HellermannTyton provide high fibre capacity and flexibility within the multi dwelling unit (MDU) .

The range has been designed in a variety of sizes to service the varying sizes of apartment blocks or office buildings:

  • The S5, the largest enclosure in the range, offers up to 432 fibres or 96 connectorised fibre ports
  • The S4 offers 240 fibres or 24 connectorised fibre ports.
  • The S3, the middle sized enclosure offers up to 96 fibres or 24 connectorised ports
  • The S2 XL offers 32 LC APC customer connections
  • The S2 offers 24 LC customer connections
  • The S1 offers 12 connectorised fibre drops
  • The S1 XS, the smallest in the range provides 12 connectorised fibre drops, designed for the smaller residential or building unit.

Products at a glance

MDU-S4 - Up to 240 Splices

S4 - Up to 240 Splices

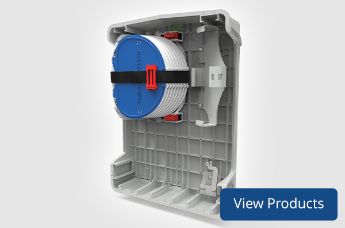

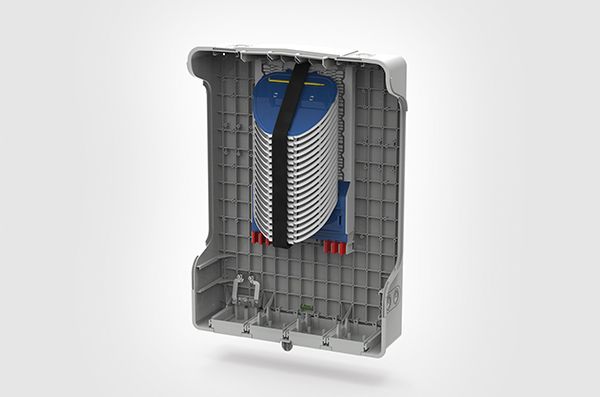

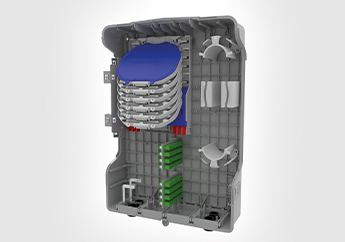

MDU - S5

View in 3D



Up to 432 Managed Fibre Splices

Up to 432 Managed Fibre Splices

A wall mountable enclosure manufactured from V0, UV rated polycarbonate designed for both internal and external applications within the last mile of the FTTx network.
The enclosure can be fitted with either the 250µm or the 900µm HellermannTyton IR fibre management systems or a combination of both offering the adaptability of a wide range of point to point (P2P)  or Point to Many Point (P2MP) applications.
Both IR fibre management systems can be supplied with a range of pre-installed splitter assemblies reducing installation times and simplifying the connection process.

Features and Benefits

  • IP54 Rated
  • Splice Only and Connectorised versions available
  • Fibre Loop Storage basket
  • Horizontal and Vertical cable lay through
  • 3 Locking options
  • Up to 432 Fibre splices
  • 96 LC / 48 SC connections
  • 568 x 375 x 163mm (H x W x D)

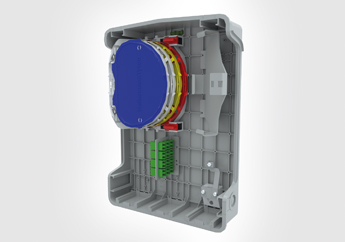

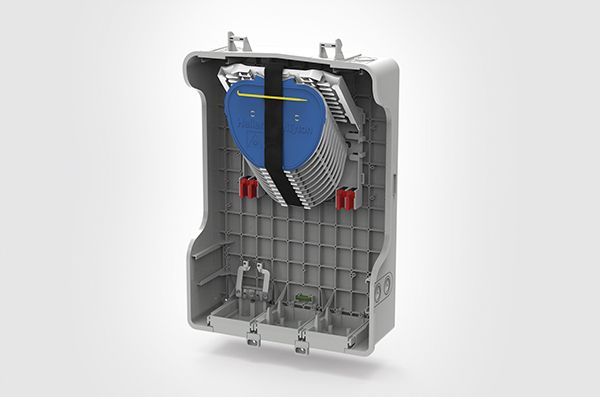

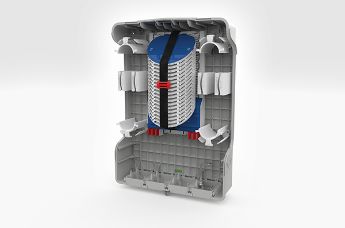

MDU - S4

View in 3D



Up to 240 Managed Fibre Splices

MDU - S4

Application Information The HellermannTyton S4 series of wall mountable enclosures are suitable for both internal and external applications and have been developed for use within the last mile of the FTTX network.

The enclosure has been designed to accommodate the HellermannTyton IR Fibre Management system and offers the adaptability of point to multi point (P2MP) or point to point (P2P) configuration.

The enclosure can be supplied pre-connectorised with up to 24x LC duplex adaptors (48 Fibres or 24x SC simplex adaptors (24 fibres). A splice only configuration can offer up to 240 fibres.

Features and Benefits

  • IR Fibre Management System
  • 10 x SE-IR MKII or 20 x SC-B MKII trays
  • 48 Fibres with LC Duplex
  • 24 Fibres with SC Simplex
  • 240 Fibres splice only
  • Loop Storage Management
  • IP54/IK08 Rating
  • V0 Rating
  • 24 way drop seal cable entry
  • Works with 250µm, 600µm, 900µm fibre
  • Cable anchor brackets
  • Optional rear storage mounting bracket
  • Splitter configurations available
  • 470 x 307 x 147 (H x W x D)

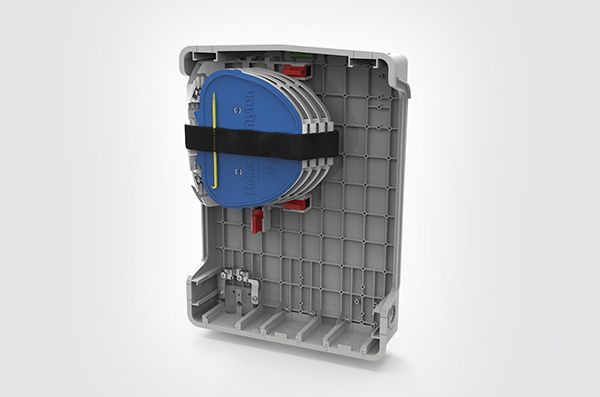

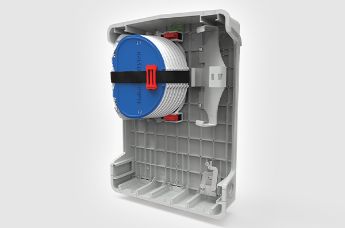

MDU - S3

View in 3D



​​​​​​​Small Enclosure with up to 96 Splices

​​​​​​​Small Enclosure with up to 96 Splices

A wall mountable enclosure manufactured from V0, UV stable polycarbonate designed for both internal and external applications.
The enclosure can be fitted with the 250um HellermannTyton IR fibre management system and offers the adaptability of Point to Point (P2P) or Point to Many Point (P2MP) applications.
The IR fibre management systems can be fitted with a maximum of 3 off tray splitters releasing all of the tray space for splicing.
A wide range of splitter assemblies can be pre-installed reducing installation times and simplifying the connection process.

Features and Benefits

  • Up to 96 Splices
  • IP54 Rated
  • 24 LC / 12 SC connections
  • Fibre Loop Storage basket
  • Horizontal and Vertical cable lay through
  • Built in spirit level
  • 3 Fibre splitter positions
  • 340 x 247 x 76mm (H x W x D)

MDU - S2 XL

View in 3D



32 LC APC customer connections

MDU - S2 XL

The HellermannTyton MDU S2 XL provides a cost effective solution for installing pre-terminated drop cables in P2P (Point to Point) or Point to Multi Point (P2MP) Fibre to the Home (FTTH) applications.
The enclosure has been designed to physically separate the feeder cable 250µm fibres from the customer connection points. Designed for indoor or outdoor use,  it delivers up to 32 drop cable customer connections.

Features and Benefits:

  • UV stable Polycarbonate (PCUV) and V0 rated
  • 32 LC APC customer connections
  • Separation of spliced feeder cable from connectorised drop cables
  • Maximum of 4 x 1:8 Bare End to LC/APC PLC Splitters (P2MP applications)
  • 4 inbound/24 outbound ports
  •  Positive fibre management (30mm bend radius)
  • IP55 and IK08 rating
  • Secure, tamper proof cover
  • Physical separation of installation fibre and customer connections
  • Pole or building facade mounting features
  • Low profile
  • Compliant with IEC 61753 and IEC 61300-3-34

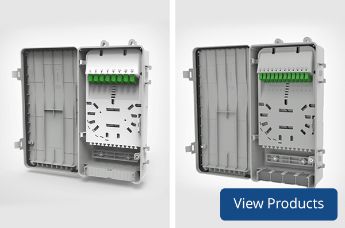

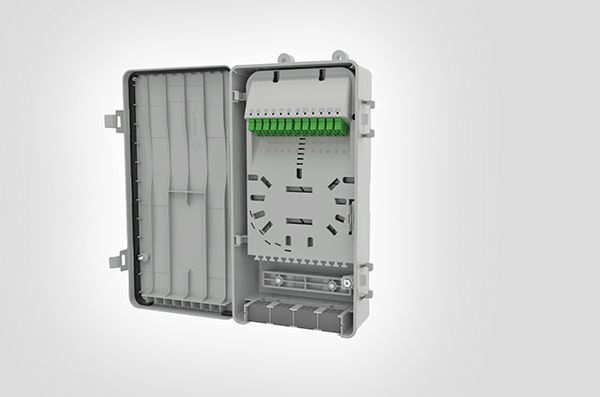

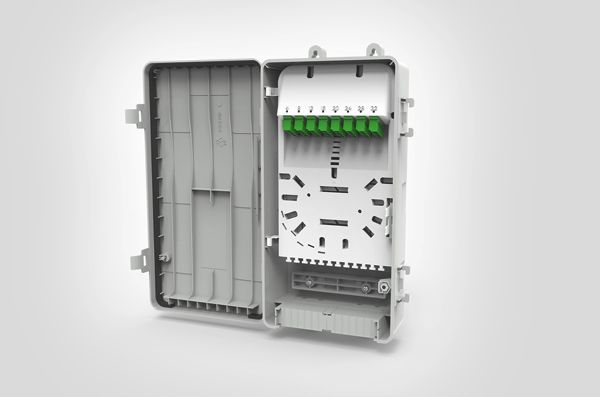

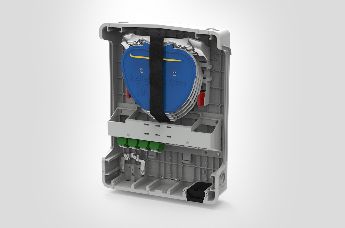

MDU - S2

View in 3D



Up to 24 LC or SC Drops

MDU - S2

The HellermannTyton MDU S2 Series of enclosures provides a cost effective secure solution for installing pre-terminated drop cables in Fibre to the Home (FTTH) applications.
The enclosure has been designed to physically separate the feeder cable 250µm fibres from the customer connection points. It is designed to deliver up to 24 drop cable customer connections.

Features and Benefits

  • Separation of spliced feeder cable from connectorised drop cables
  • 24 LC SX or SC SX customer connections
  • 4 inbound/24 outbound ports
  • Positive fibre management (30mm min bend radius)
  • IP55 and IK08 rating
  • Secure, tamper proof cover
  • Physical separation of installation fibre and customer connections
  • Pole or building facade mounting features
  • Low profile
  • Low smoke material
  • 342 x 177 x 90mm (H x W x D)

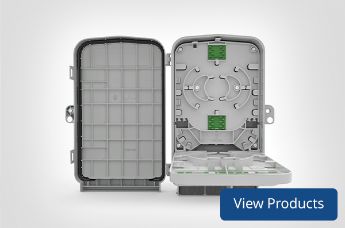

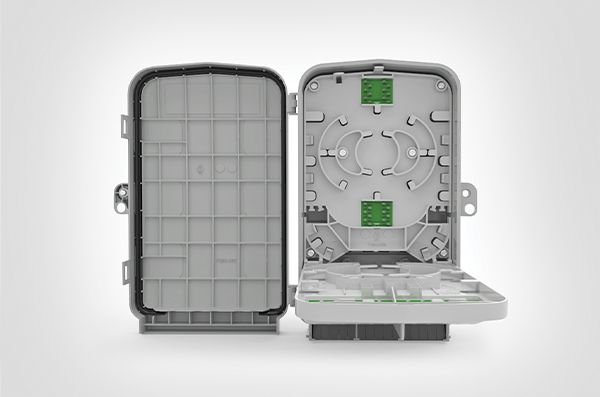

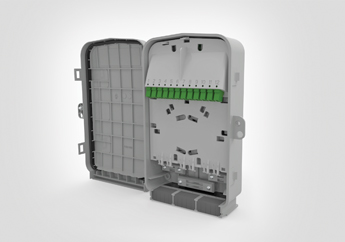

MDU - S1

View in 3D



12 Customer Connection Points

12 Customer Connection Points

A wall mountable enclosure manufactured from V0, UV stable polycarbonate designed for both internal and external applications and can be building/facade or pole mounted and provides 12 SC or LC simplex customer connection points. The enclosure has provision for a moulded customer logo if required.

Features and Benefits

  • Separation of spliced feeder cable from connectorised drop cables
  • 12 SC SX / LC SX customer connections
  • 4 inbound ports, 12 outbound ports
  • Positive fibre management (30mm min bend radius)
  • IP55 and IK09 rating
  • Tamper-proof
  • Pole or building facade mounting features
  • Low profile
  • 241 x 154 x 72mm (H x W x D)

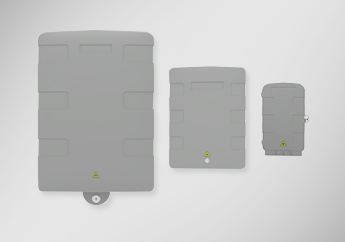

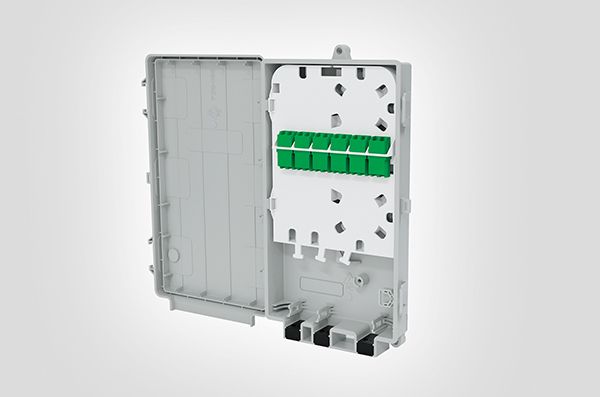

MDU - S1 XS

View in 3D



12 Customer Connection Points

MDU - S1 XS

The MDU S1XS has been designed as a Building Entry Point (BEP) to provide a fibre termination and network demarcation point internal to the connected premise in a Fibre to the Home (FTTH) network. In addition to providing an internal test point the enclosure can also accommodate up to 12 customer fibre connections.

Features and Benefits

  • 12 Customer Connections
  • 6 SC Simplex/LC Duplex connectors
  • Up to 30 fibre splices
  • Splitter accommodation
  • Positive fibre management (30mm minimum bend radius)
  • IP54 rating
  • Low Profile
  • Tamper-proof
  • Internal V0 Rated
  • 233 x 135 x 37mm (H x W x D)
