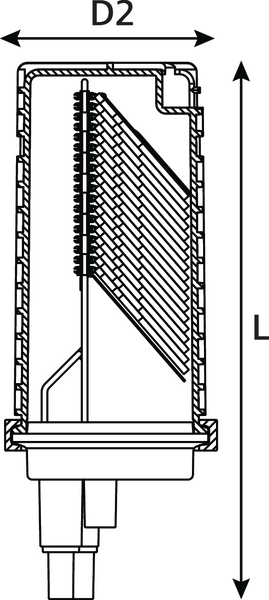

FDN 59 port AB length tubed closure with 18 SMF SE-A moulded splice holder trays
Art.-No. 857-00650
| FDNTB-ABXCH3X
|
Copied
- Maximum 432 fibre splice capacity
- 58 round ports and 1 oval port
- Supplied with 18 SMF SE-A Moulded Splice Holder Trays
- Maximum 24 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
Show more
Show less
More products in this product group:
| Colour | Black (BK) |
| Content |
FDN 59 Port Base AB-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Tray Support Frame Anchor Fixing Kit (3) 18 x SMF SE-A 3A Splice Trays Tray Tool Hook and Loop Tray Securing Straps Transportation Tubing Tubefix – Tube to Tray Securing Blocks Hook and Loop Management Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 25 Green Marker 1 – 25 |
| Cover Type | AB |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | FDNTB-ABXCH3X |
| Package Content packed in | kit |
| Port | L, T, S, B, R |
| Port count | 1, 2, 4, 2, 52 |
| Product Family | AB Length |
| Product Group | FDN 59 Port Tubed Closure |
| Qty Trays | 18 |
| Short Description | FDN 59 port AB length tubed closure with 18 SMF SE-A moulded splice holder trays |
| Splice Capacity | 432 |
| Technical Description |

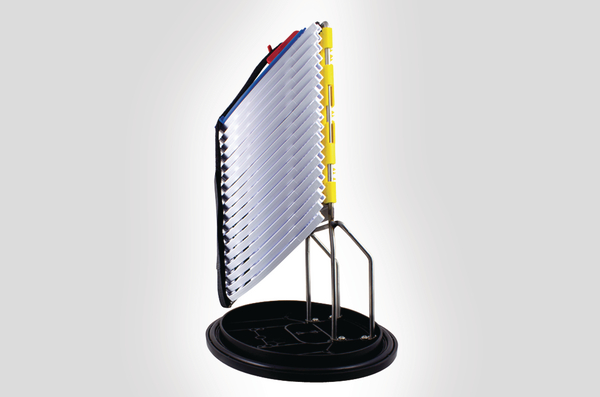

The FDN 59 Port AB Length closure is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 18 SMF SE-A 3A moulded splice holder trays. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system. |
| Type | FDNTB-ABXCH3X |
| Type of Tray | Hellipse SMF SE-A |
| Variant | Outdoor FTTx Enclosures |
